Pins Inspection Sorting Machine: A Comprehensive Guide

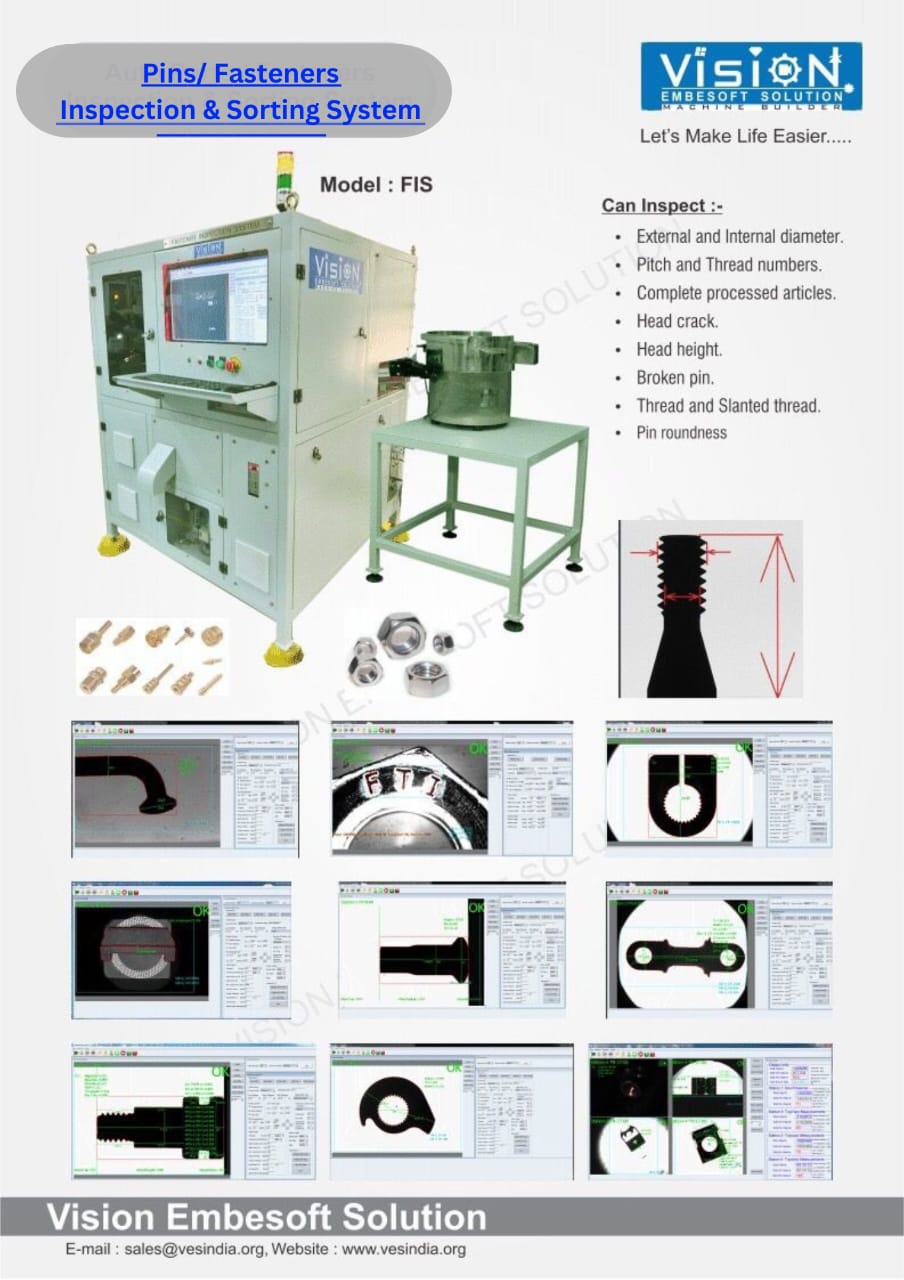

Pins Inspection Sorting Machine

Introduction

Pins are precision-engineered fastening and locating components used extensively across the automotive, aerospace, electronics, machinery, medical, and industrial manufacturing sectors. They play a vital role in alignment, positioning, fastening, and load transfer, making dimensional accuracy and surface quality essential. To maintain consistent product quality and eliminate defective parts, manufacturers increasingly rely on Pins Inspection Sorting Machines. These advanced systems utilize machine vision, AI-powered inspection, and precision measurement technologies to inspect and sort pins with exceptional speed and accuracy.

Understanding the Need for Pins Inspection

Pins are manufactured through precision machining, cold forging, grinding, turning, heat treatment, and surface finishing processes. During production, defects such as dimensional variations, burrs, scratches, cracks, improper chamfers, bending, and material imperfections may occur. Manual inspection is often slow, inconsistent, and unsuitable for high-volume production. Automated Pins Inspection Sorting Machines deliver accurate, repeatable, and reliable inspection while significantly improving manufacturing efficiency.

How Pins Inspection Sorting Machines Work

Using industrial cameras, machine vision technology, AI-powered image processing, precision optics, and laser measurement systems, each pin is inspected for defects including:

• Dimensional inaccuracies
• Bending and straightness defects
• Surface scratches
• Burrs and sharp edges
• Cracks and fractures
• Chamfer defects
• Diameter variations
• Length deviations
• Material imperfections
• Missing or incorrect features

After inspection, Pins are automatically sorted according to:

• Diameter
• Length
• Shape
• Straightness
• Material type
• Quality grade
• Customer specifications

Pins Inspection Sorting System: A Comprehensive Quality Control Solution

A Pins Inspection Sorting System combines intelligent vision technology, precision measurement, and automated sorting to ensure every pin meets strict manufacturing standards.

The system can inspect:

• Outer diameter
• Length measurement
• Straightness verification
• Chamfer quality
• Roundness
• Burr detection
• Surface scratches and dents
• Cracks and fractures
• Presence or absence of features
• Pattern matching
• Orientation verification
• Color verification
• Barcode and Data Matrix code reading
• Complete production traceability

These inspection capabilities help manufacturers improve product consistency, reduce defective components, and optimize production efficiency.

Key Components of a Pins Inspection Sorting Machine

• Automatic Feeding System: Continuously supplies pins for uninterrupted high-speed inspection.
• Industrial Vision Cameras: Capture high-resolution images from multiple inspection angles.
• Precision LED Lighting: Provides uniform illumination for accurate defect detection.
• Laser Measurement Module: Performs micron-level dimensional verification where required.
• AI-Based Inspection Software: Automatically detects burrs, cracks, scratches, dimensional deviations, bending, chamfer defects, and other imperfections.
• Automatic Sorting Unit: Separates accepted and rejected pins according to inspection results.
• Inspection Data Management System: Maintains inspection records for quality assurance and complete traceability.

Benefits of Automated Pins Sorting

• High Inspection Accuracy: Detects microscopic defects with exceptional precision.
• Higher Production Efficiency: Enables continuous high-speed inspection for mass production.
• Reduced Manufacturing Costs: Minimizes labor costs, scrap, and product rework.
• Consistent Product Quality: Eliminates human inspection inconsistencies.
• Complete Traceability: Stores digital inspection records for quality compliance.
• Process Optimization: Generates valuable inspection data for continuous manufacturing improvement.

Types of Pins Inspection Sorting Machines

• Automatic Pins Sorting Machine
• Machine Vision Pins Inspection System
• Camera Vision Pins Inspection Machine
• Laser Measurement Inspection System
• High-Speed Pins Sorting Equipment
• AI-Based Pins Defect Detection Machine
• Precision Optical Inspection Machine for Pins

Applications of Pins Inspection Sorting Machines

These inspection systems are widely used in:

• Automotive Manufacturing
• Aerospace Components
• Industrial Machinery
• Precision Engineering
• Medical Devices
• Electronics Manufacturing
• Fastener Manufacturing
• General Industrial Components

Conclusion

Pins Inspection Sorting Machines provide manufacturers with a highly accurate and fully automated solution for inspecting precision pins before assembly and shipment. By combining machine vision, AI-powered defect detection, laser measurement, and automated sorting technology, these systems accurately identify burrs, scratches, dimensional deviations, bending, chamfer defects, cracks, roundness errors, and material imperfections. The result is improved product quality, increased manufacturing efficiency, reduced production costs, and complete inspection traceability. As industries continue demanding tighter tolerances and higher quality standards, automated Pins Inspection Sorting Machines have become an essential part of modern quality control systems.
