Brass Earthing Terminal Electric Bus Bar Inspection Sorting System Machine | camera vision system

Ensure unmatched precision and quality with our advanced 2-Camera Inspection System — designed specifically for Brass Earthing Terminals and Bus Bars ranging from 80 mm to 550 mm.

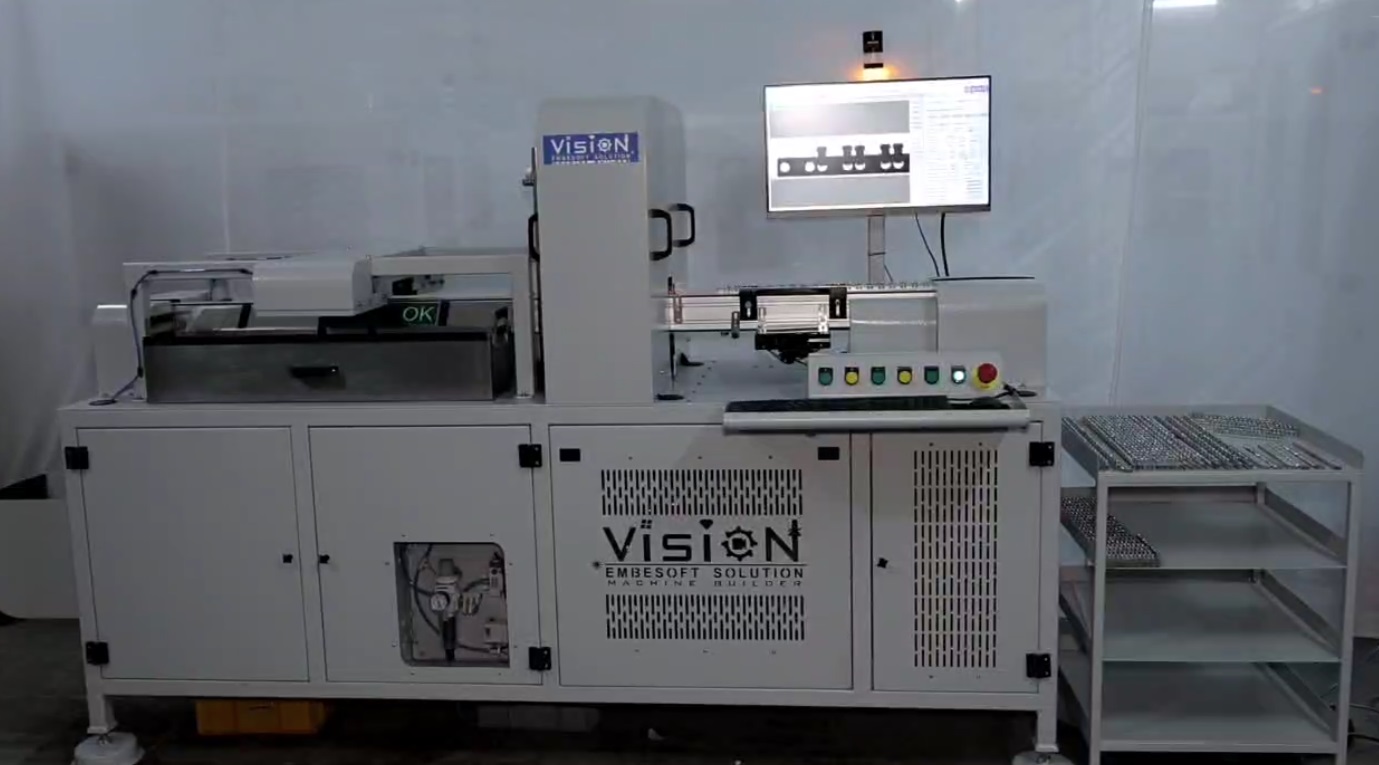

Introducing Our Brass Earthing Terminal Electric Bus Bar Inspection Sorting System

• Dual-Camera Setup
• Top Camera for surface-level accuracy.
• Side Camera for dimensional depth analysis.

Key Features & Measured Parameters

• Total Length
• Width & Height
• Start-to-Hole Distance
• Hole-to-Hole Distance
• Screw Length
• Hole Diameter
• Missing Screw Detection
• Missing Operation Detection

Designed for high-accuracy dimensional and component validation, this system guarantees reliability in your inspection process, critical for quality assurance in electrical and industrial applications.

For more details, visit Vision Embesoft Solution www.vesindia.org.
