Bullet Jacket Optical Inspection, Measurement & Sorting Machine

Understanding the Importance of Bullet Jacket Inspection

The Advanced Bullet Jacket Optical Surface Inspection Measurement Sorting Machine System in India is a cutting-edge, AI-powered solution designed to deliver 100% automated inspection, real-time defect detection, and high-speed sorting.

Developed by leading machine vision system manufacturers in Ahmedabad, Gujarat, this system ensures zero-defect production, improved efficiency, and full traceability for industries across India and global markets.

Why Bullet Jacket Inspection Matters in Manufacturing

Problems with Traditional Inspection Methods Problems Card List:

  • Manual inspection is slow & unreliable
  • High chances of human error
  • Not suitable for mass production
  • No real-time quality data

Solution: Optical Sorting System in India Solution Card List:

  • 100% automated inspection
  • High-speed production capability
  • AI-based defect detection
  • Real-time monitoring and analytics

How Bullet Jacket Inspection Optical Sorting Machine Works

The system uses advanced machine vision inspection technology and automation.

  • High-speed feeding system
  • Multi-angle inspection using industrial cameras
  • AI-based image processing
  • Automatic sorting of accepted/rejected parts
  • Data storage for traceability

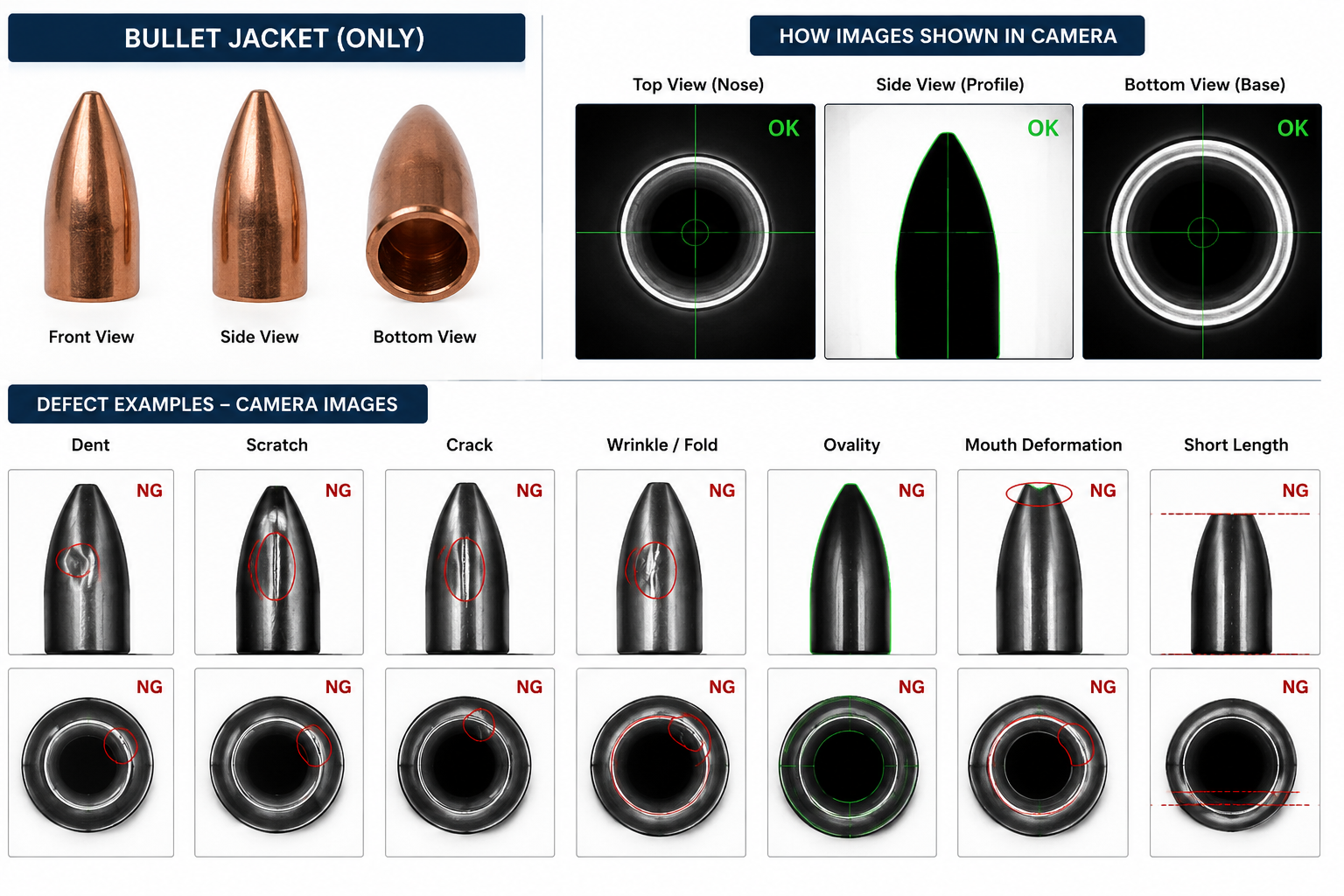

Inspection Capabilities

The system uses advanced machine vision inspection technology and automation.

  • Overall Dimensions

    Overall length, maximum outside diameter (OD), minimum/maximum diameter

  • Diameter

    Body OD, nose OD, base OD, diameter at multiple inspection zones

  • Inside Geometry

    Inside diameter (ID), opening diameter, internal profile where optically accessible

  • Wall Thickness

    Wall-thickness variation, minimum/maximum thickness, uniformity around circumference

  • Profile

    Complete external profile, nose profile, ogive/profile shape, body contour

  • Roundness

    Circularity/roundness of cylindrical sections

  • Concentricity

    Circularity/roundness of cylindrical sections

  • Straightness

    Jacket axis straightness, body deformation, bending

  • Length / Height

    Total jacket length, section lengths, critical feature positions

  • Taper

    Body taper, nose taper, diameter variation along the profile

  • Edge / Mouth

    Mouth diameter, edge condition, edge deformation, uneven rim

  • Surface Defects

    Scratches, dents, pits, wrinkles, cracks, folds, marks, surface damage

  • Form Defects

    Bulging, flattening, ovality, deformation, wrinkles, local distortion

  • Manufacturing Marks

    Die marks, forming marks, tooling marks, unwanted impressions

  • Surface Finish

    Surface uniformity, discoloration, stains, oxidation/corrosion, coating/plating defects where applicable

  • Presence / Completeness

    Missing feature, incomplete forming, incorrect shape, damaged component

  • Orientation

    Correct orientation and presentation for inspection

  • Foreign Material

    Visible contamination, particles, oil/metal residue where detectable

  • Sorting

    OK/NG classification, defect-based classification, dimensional sorting, recipe-based sorting

Advanced Features (Machine Vision System India)

  • AI-based optical inspection system
  • High-resolution industrial cameras
  • Real-time defect detection software
  • PLC & robotic automation compatibility
  • Industry 4.0 ready system
  • Custom inspection solutions

Key Components of Optical Sorting Machine

High-speed feeder system
Industrial vision cameras
Image processing software
Automatic sorting mechanism

Technical Specifications (Customizable)

  • Inspection Speed Up to 200 parts/min
  • Automation Fully automatic system
  • Accuracy +/-1 Pixel to +/-2 Pixel
  • Minimum Defect Size 10 Pixel Width and 100-Pixel Length
  • Integration PLC / Robotics supported
  • Camera Resolution Up to 16 MP
  • Total Camera Up to 7
  • Software Windows 11, 64-Bit Compatible

Benefits of Optical Inspection Sorting System

Best Quality Control System in India

Ensures zero defect production

High-Speed Sorting Machine

Handles bulk production efficiently

Cost Saving Solution

Reduces labor and rejection cost

Increase Production Efficiency

Boosts productivity

Full Traceability System

Tracks every component

Smart Manufacturing (Industry 4.0)

Data-driven decision making

Applications Across Industries

Widely used in:

  • Automotive industry in India
  • Aerospace manufacturing
  • Defense & ammunition production
  • Electronics manufacturing
  • Industrial component manufacturing
  • Electrical Parts manufacturing
  • Fasteners manufacturing

Types of Optical Sorting Machines in India

  • Cartridge Case Optical Inspection, Measurement & Sorting Machine
  • Bullet Jacket Cup Optical Inspection, Measurement & Sorting Machine
  • Bullet Jacket Optical Inspection, Measurement & Sorting Machine
  • Bullet Core Optical Inspection, Measurement & Sorting Machine
  • Primer Cup Optical Inspection, Measurement & Sorting Machine
  • Bullet Projectile Optical Inspection, Measurement & Sorting Machine

Service Locations

We provide optical sorting machines and inspection systems across India, including:

India coverage

Major cities & industrial hubs

  • Ahmedabad Gujarat
  • Mumbai Maharashtra
  • Pune Maharashtra
  • Bangalore Karnataka
  • Chennai Tamil Nadu
  • Hyderabad Telangana
  • Rajkot, Surat, Vadodara Gujarat

Global exports

International markets we serve

  • USA North America
  • Europe EU & UK
  • Middle East GCC countries
  • Southeast Asia ASEAN region

Applications Across Industries

  • Leading optical sorting machine manufacturer in Ahmedabad

  • Customized industrial automation solutions

  • Advanced AI & machine vision technology

  • Strong service & support network across India

  • Trusted by manufacturers worldwide

Gallery

Left Arrow
Right Arrow
GET IN TOUCH

Contact Us - Get The Best Price In India

Looking for the best cartridge inspection machine in India? Our experts are ready to help.

Request demo Get quotation Contact experts

Conclusion

The Advanced Bullet Jacket Optical Surface Inspection Measurement Sorting Machine System in India is the ideal solution for manufacturers aiming to achieve high precision, speed, and zero-defect production. With AI-powered vision technology and automation, it transforms quality control into a smart and efficient process.
