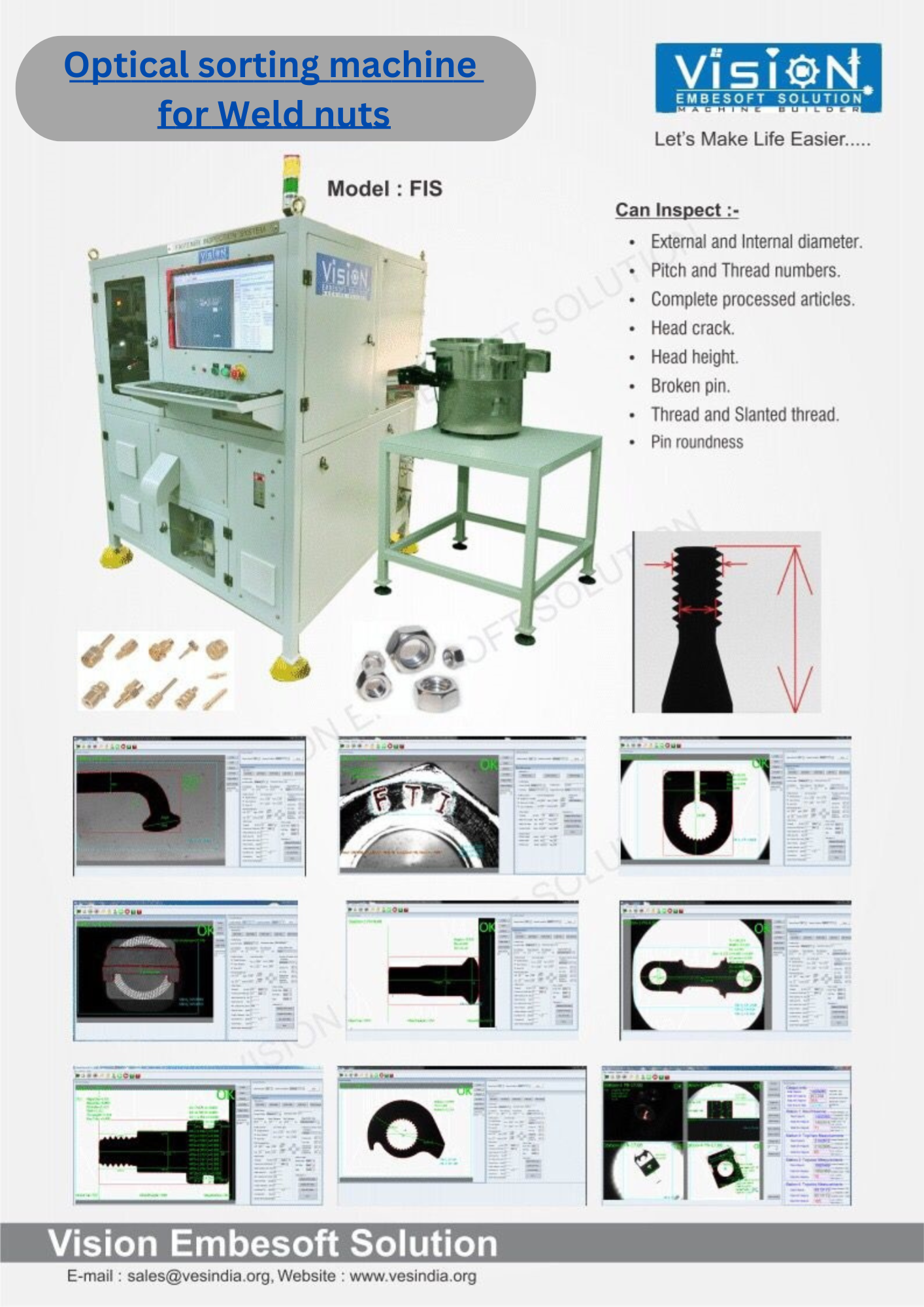

optical sorting machine for Weld nuts

Optical Sorting Machine for Weld Nuts: A Comprehensive Guide

Optical Sorting Machine for Weld Nuts

Introduction

Weld Nuts are widely used in automotive body assemblies, sheet metal fabrication, industrial machinery, electrical equipment, and heavy engineering applications. Since these components are permanently welded to metal structures, maintaining accurate dimensions, thread quality, projection integrity, and surface finish is critical. Advanced Optical Sorting Machines for Weld Nuts utilize machine vision technology, high-resolution cameras, and AI-powered image processing to inspect, measure, detect defects, and automatically sort every Weld Nut with exceptional speed and precision.

Understanding the Need for Weld Nuts Inspection

During manufacturing, Weld Nuts may develop dimensional variations, damaged threads, projection defects, burrs, cracks, dents, or surface imperfections. Manual inspection is slow, inconsistent, and unsuitable for high-volume production. Automated optical inspection systems provide fast, repeatable, and highly accurate quality control while significantly improving manufacturing efficiency.

How Weld Nuts Inspection Sorting Machines Work

Using industrial vision cameras, precision optical lenses, intelligent LED lighting, and AI-based image processing software, the inspection system captures multiple images of every Weld Nut from different angles. The software measures critical dimensions, verifies internal thread quality, inspects welding projections, and detects surface defects before automatically separating accepted and rejected components.

The system can detect defects including:

• Dimensional inaccuracies
• Thread defects
• Projection defects
• Surface scratches
• Burrs
• Cracks
• Dents
• Material defects

After inspection, Weld Nuts are automatically sorted according to:

• Size
• Shape
• Thread Quality
• Material
• Quality Grade

This automated inspection process ensures exceptional accuracy while supporting high-speed manufacturing operations.

Weld Nuts Inspection Sorting System: A Comprehensive Quality Control Solution

A Weld Nuts Inspection Sorting System combines industrial cameras, precision optics, intelligent vision software, and automatic sorting mechanisms to inspect every Weld Nut with outstanding accuracy. The system ensures only defect-free components proceed to welding or assembly operations.

Key Inspection Capabilities:

• External Diameter Measurement
• Internal Thread Inspection
• Thread Pitch Verification
• Projection Height Inspection
• Overall Height Measurement
• Hex Dimension Inspection
• Surface Scratch Detection
• Burr Detection
• Crack Detection
• Presence/Absence Detection
• Automated Vision Measurement
• Pattern Matching
• Vision Guided Robot Integration
• Part Orientation Verification
• Color Verification
• Barcode Reading & Traceability

These advanced inspection capabilities help manufacturers improve product quality, reduce defects, minimize manual inspection, and maximize production efficiency.

Key Components of a Weld Nuts Inspection Sorting Machine

• High-Speed Feeding System
• Industrial Vision Cameras
• Precision Optical Lenses
• LED Illumination System
• AI-Based Image Processing Software
• Automatic Sorting Mechanism

Benefits of Automated Weld Nuts Sorting

• 100% Automated Inspection
• Superior Product Quality
• High-Speed Production
• Reduced Manual Inspection Costs
• Accurate Defect Detection
• Improved Process Traceability
• Lower Rejection Rates
• Higher Manufacturing Efficiency

Types of Weld Nuts Inspection Sorting Machines

• Automatic Weld Nuts Sorting Machine
• Machine Vision Weld Nuts Inspection System
• Camera Vision Weld Nuts Inspection Machine
• High-Speed Weld Nuts Sorting Equipment
• Industrial Weld Nuts Inspection System
• Quality Control Weld Nuts Inspection Machine
• Surface Defect Detection Machine for Weld Nuts

Applications of Weld Nuts Inspection Sorting Machines

• Automotive Manufacturing
• Sheet Metal Fabrication
• Construction Equipment
• Electrical Equipment Manufacturing
• Industrial Machinery
• Heavy Engineering

Conclusion

Optical Sorting Machines for Weld Nuts provide fast, reliable, and fully automated inspection using advanced machine vision technology. By combining dimensional measurement, thread inspection, weld projection verification, surface defect detection, and intelligent sorting, manufacturers can improve product quality, reduce production costs, increase manufacturing efficiency, and ensure every Weld Nut meets the highest quality standards.
