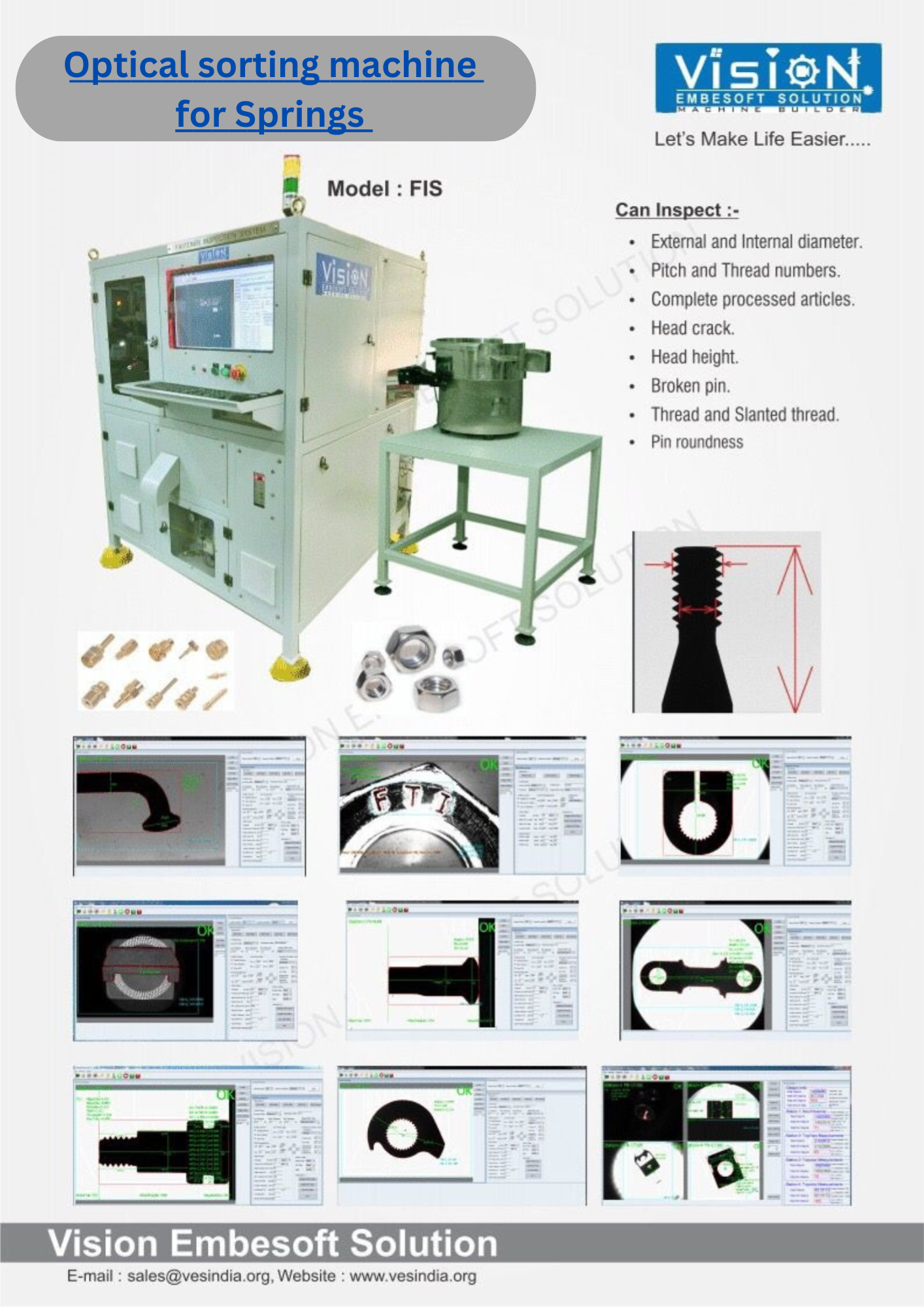

optical sorting machine for Springs

Optical Sorting Machine for Springs: A Comprehensive Guide

Optical Sorting Machine for Springs

Introduction

Springs are critical mechanical components used to store and release energy in countless industrial applications. They are widely used in automotive, aerospace, electronics, medical devices, industrial machinery, consumer products, and heavy engineering. Since spring performance depends on precise dimensions and consistent material properties, maintaining strict quality standards is essential. Optical Sorting Machines for Springs utilize advanced machine vision technology, industrial cameras, and intelligent image processing software to perform high-speed inspection, precision measurement, and automatic sorting with exceptional accuracy.

Understanding the Need for Springs Inspection

During the spring manufacturing process, defects such as incorrect coil diameter, improper pitch, cracks, surface scratches, burrs, deformation, bent coils, or incomplete forming may occur. Manual inspection is slow, inconsistent, and unsuitable for large-scale production. Automated optical inspection systems ensure every Spring meets precise engineering specifications while improving manufacturing efficiency.

How Springs Inspection Sorting Machines Work

Using high-resolution industrial cameras, precision optics, intelligent LED lighting, and AI-powered image processing software, the inspection system captures multiple images of each Spring from different viewing angles. The software evaluates dimensional accuracy, coil geometry, pitch, free length, surface quality, and structural integrity before automatically separating accepted and rejected components.

The system can detect defects including:

• Dimensional inaccuracies
• Incorrect coil pitch
• Surface scratches
• Burrs
• Cracks
• Bent or deformed coils
• Incomplete forming
• Material imperfections

After inspection, Springs are automatically sorted according to:

• Size
• Shape
• Material
• Quality Grade
• Customer Specifications

This fully automated inspection process ensures high-speed production with exceptional consistency and precision.

Springs Inspection Sorting System: A Comprehensive Quality Control Solution

A Springs Inspection Sorting System integrates industrial cameras, advanced optics, intelligent vision software, and automatic sorting mechanisms to perform comprehensive inspection of compression springs, extension springs, torsion springs, and other precision spring components. The system ensures only defect-free Springs proceed to assembly or packaging.

Key Inspection Capabilities:

• Outer Diameter Measurement
• Inner Diameter Measurement
• Wire Diameter Measurement
• Free Length Measurement
• Coil Pitch Inspection
• Number of Coils Verification
• End Shape Inspection
• Roundness Measurement
• Surface Scratch Detection
• Burr Detection
• Crack Detection
• Presence/Absence Verification
• Automated Vision Measurement
• Pattern Matching
• Vision-Guided Robot Integration
• Part Orientation Verification
• Color Verification
• Barcode Reading & Traceability

These advanced inspection capabilities help manufacturers reduce defects, improve product consistency, increase production speed, and maintain strict quality standards.

Key Components of a Springs Inspection Sorting Machine

• High-Speed Feeding System
• Industrial Vision Cameras
• Precision Optical Lenses
• LED Illumination System
• AI-Based Image Processing Software
• Automatic Sorting Mechanism

Benefits of Automated Springs Sorting

• 100% Automated Inspection
• Superior Product Quality
• High-Speed Inspection
• Reduced Manual Labor
• Accurate Defect Detection
• Improved Production Efficiency
• Lower Scrap and Rework Costs
• Complete Production Traceability

Types of Springs Inspection Sorting Machines

• Automatic Springs Sorting Machine
• Machine Vision Springs Inspection System
• Camera Vision Springs Inspection Machine
• High-Speed Springs Sorting Equipment
• Industrial Springs Inspection System
• Quality Control Springs Inspection Machine
• Surface Defect Detection Machine for Springs

Applications of Springs Inspection Sorting Machines

• Automotive Industry
• Aerospace Industry
• Electronics Manufacturing
• Medical Device Manufacturing
• Industrial Machinery
• Consumer Product Manufacturing

Conclusion

Optical Sorting Machines for Springs provide fast, accurate, and fully automated quality inspection using advanced machine vision technology. By combining dimensional measurement, coil geometry inspection, pitch verification, surface defect detection, and intelligent sorting, manufacturers can improve product quality, reduce manufacturing costs, increase production efficiency, and ensure every Spring meets the highest engineering and industry standards.
