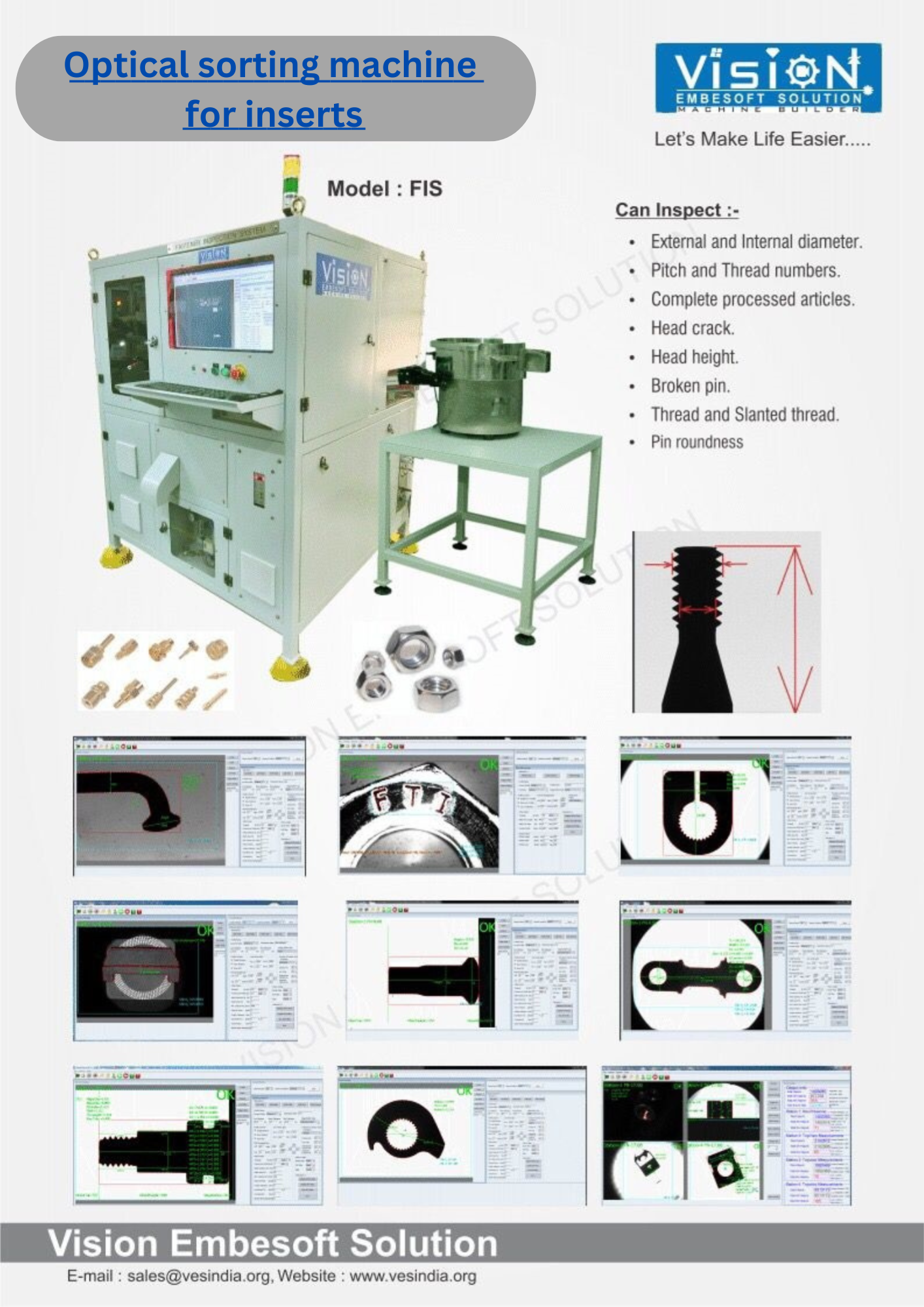

Optical Sorting Machine for Inserts: A Comprehensive Guide

Optical Sorting Machine for Inserts

Introduction

Inserts are precision-engineered components widely used in plastic injection molding, automotive assemblies, electronics, electrical equipment, medical devices, and industrial machinery. Their dimensional accuracy and surface quality are critical for ensuring secure assembly and long-term performance. Optical Sorting Machines for Inserts utilize advanced machine vision technology, high-resolution industrial cameras, and AI-powered image processing to provide fast, accurate, and fully automated inspection and sorting.

Understanding the Need for Inserts Inspection

Inserts undergo manufacturing processes such as turning, threading, knurling, machining, and surface finishing. During production, defects such as dimensional variations, damaged threads, burrs, scratches, cracks, dents, plating defects, or incomplete knurling may occur. Manual inspection is time-consuming, inconsistent, and unsuitable for high-volume production. Automated optical inspection systems ensure 100% inspection, helping manufacturers maintain consistent quality while increasing productivity.

How Inserts Inspection Sorting Machines Work

Using industrial vision cameras, precision optical lenses, intelligent LED lighting, and AI-based image processing software, the inspection system captures multiple high-resolution images of every insert from different viewing angles. The software analyzes dimensions, thread quality, geometry, knurl patterns, and surface finish before automatically separating accepted and rejected parts.

The inspection system detects defects including:

• Dimensional inaccuracies
• Thread defects
• Surface scratches
• Burrs
• Cracks
• Dents
• Knurling defects
• Plating defects
• Material contamination
• Missing or damaged features

After inspection, Inserts are automatically sorted according to:

• Dimensions
• Shape and Geometry
• Thread Specifications
• Knurl Pattern
• Material Type
• Quality Grade
• Customer Specifications

This fully automated inspection process provides exceptional accuracy, repeatability, and high-speed sorting for modern manufacturing environments.

Inserts Inspection Sorting System: A Comprehensive Quality Control Solution

An Inserts Inspection Sorting System combines industrial cameras, precision optics, AI-powered vision software, and automated sorting mechanisms to inspect every insert before packaging or assembly. This ensures only defect-free inserts move forward in the production process.

Key Inspection Capabilities

• Dimensional Measurement
• Outer and Inner Diameter Inspection
• Length and Thickness Measurement
• Thread Inspection
• Knurl Pattern Verification
• Surface Scratch Detection
• Burr Detection
• Crack Detection
• Presence/Absence Verification
• Automated Vision Measurement
• Pattern Matching
• Vision-Guided Robot Integration
• Part Orientation Verification
• Color and Surface Finish Inspection
• Barcode Reading & Traceability

These advanced inspection capabilities help manufacturers reduce defects, improve production efficiency, lower inspection costs, and maintain consistent product quality.

Key Components of an Inserts Inspection Sorting Machine

• High-Speed Feeding System
• Industrial Vision Cameras
• Precision Optical Lenses
• LED Illumination System
• AI-Based Image Processing Software
• Automatic Sorting Mechanism

Benefits of Automated Inserts Sorting

• 100% Automated Inspection
• Improved Product Quality
• High-Speed Inspection
• Reduced Manual Labor
• Accurate Defect Detection
• Lower Manufacturing Costs
• Reduced Scrap and Rework
• Complete Production Traceability

Types of Inserts Inspection Sorting Machines

• Automatic Inserts Sorting Machine
• Machine Vision Inserts Inspection System
• Camera Vision Inserts Inspection Machine
• High-Speed Inserts Sorting Equipment
• Industrial Inserts Inspection System
• Quality Control Inserts Inspection Machine
• Surface Defect Detection Machine for Inserts

Applications of Inserts Inspection Sorting Machines

• Plastic Injection Molding
• Automotive Components
• Electrical Equipment
• Consumer Electronics
• Medical Devices
• Industrial Machinery
• Precision Engineering

Conclusion

Optical Sorting Machines for Inserts provide highly accurate, reliable, and fully automated inspection using advanced machine vision technology. By combining dimensional measurement, thread inspection, knurl verification, surface defect detection, AI-powered image analysis, and intelligent sorting, manufacturers can improve product quality, reduce production costs, increase throughput, and ensure every insert meets stringent customer and industry quality standards.
