Optical Sorting Machine for Circlips: A Comprehensive Guide

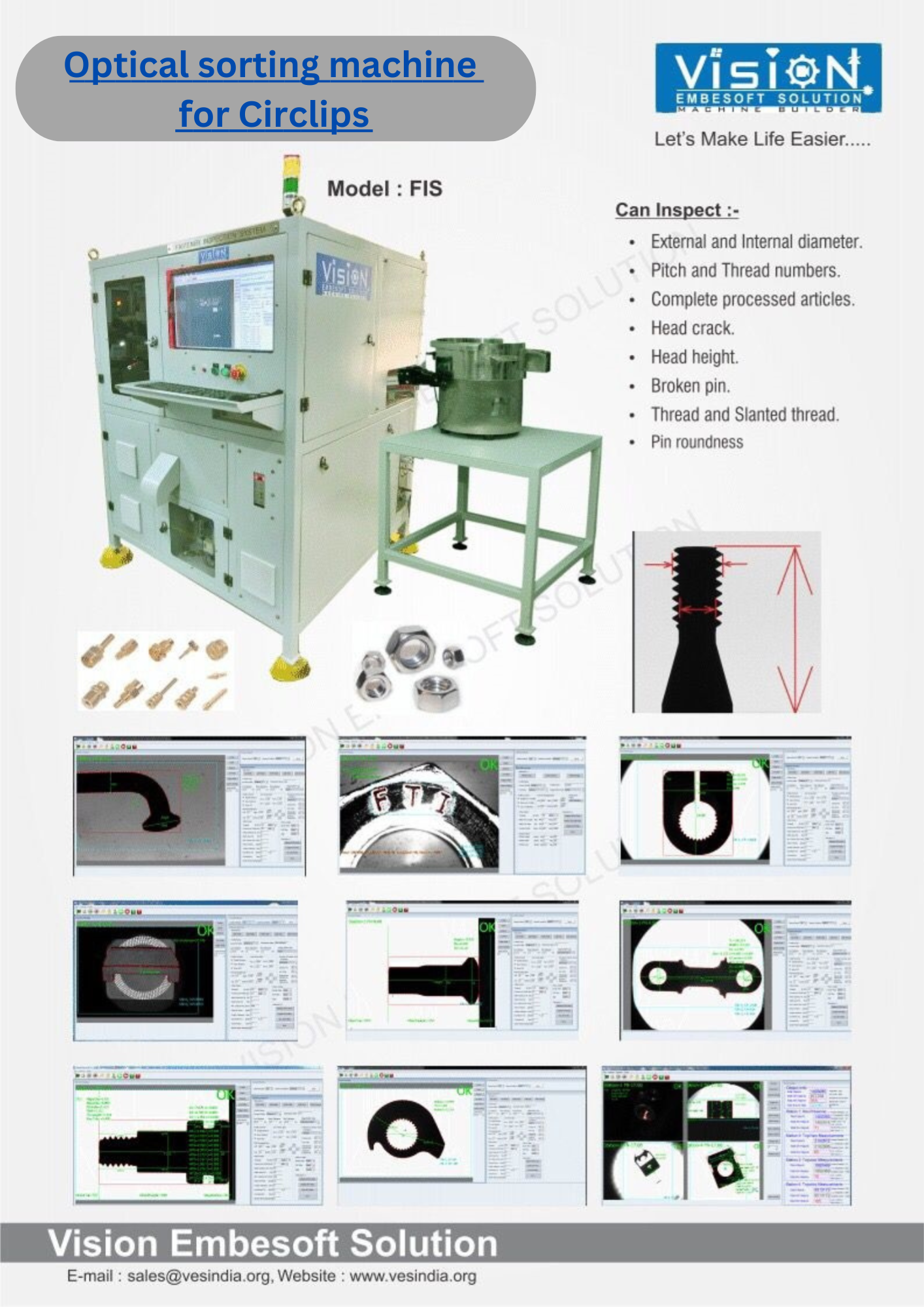

Optical Sorting Machine for Circlips

Introduction

Circlips are precision retaining components widely used in automotive, aerospace, bearings, gearboxes, hydraulic systems, and industrial machinery. Their dimensional accuracy, groove fit, thickness, and surface quality are critical for secure assembly and reliable performance. Advanced Optical Sorting Machines for Circlips utilize high-speed machine vision technology to inspect, measure, detect defects, and automatically sort every Circlip with exceptional precision.

Understanding the Need for Circlips Inspection

During manufacturing, Circlips may develop dimensional variations, burrs, cracks, scratches, deformation, incomplete profiles, or material defects. Manual inspection is slow, inconsistent, and unsuitable for high-volume production. Automated optical inspection systems provide fast, accurate, and repeatable quality control while eliminating human error.

How Circlips Inspection Sorting Machines Work

Using industrial vision cameras, precision optical lenses, intelligent LED lighting, and AI-powered image processing software, the inspection system captures multiple images of every Circlip. The software evaluates dimensions, profile, gap, thickness, roundness, and surface quality before automatically separating accepted and rejected components.

The system can detect defects including:

• Dimensional inaccuracies
• Surface scratches
• Burrs and dents
• Cracks
• Deformation
• Incomplete profile
• Material defects

After inspection, Circlips are automatically sorted according to:

• Size
• Shape
• Thickness
• Material
• Quality Grade

This automated inspection process delivers exceptional precision while supporting high-speed manufacturing environments.

Circlips Inspection Sorting System: A Comprehensive Quality Control Solution

A Circlips Inspection Sorting System combines industrial cameras, precision optics, intelligent vision software, and automated sorting mechanisms to inspect every Circlip with outstanding accuracy. The system ensures every Circlip meets strict dimensional and quality specifications before packaging or assembly.

Key Inspection Capabilities:

• Outer Diameter Measurement
• Inner Diameter Measurement
• Thickness Inspection
• Gap Width Measurement
• Roundness Verification
• Profile Inspection
• Burr Detection
• Surface Scratch Detection
• Crack Detection
• Deformation Detection
• Presence/Absence Detection
• Automated Vision Measurement
• Pattern Matching
• Vision Guided Robot Integration
• Part Orientation Verification
• Color Verification
• Barcode Reading & Traceability

These advanced inspection capabilities help manufacturers improve product quality, reduce defects, minimize manual inspection, and maximize production efficiency.

Key Components of a Circlips Inspection Sorting Machine

• High-Speed Feeding System
• Industrial Vision Cameras
• Precision Optical Lenses
• LED Illumination System
• AI-Based Image Processing Software
• Automatic Sorting Mechanism

Benefits of Automated Circlips Sorting

• 100% Automated Inspection
• Superior Product Quality
• High-Speed Production
• Reduced Manual Inspection Costs
• Accurate Defect Detection
• Improved Process Traceability
• Lower Rejection Rates
• Higher Manufacturing Efficiency

Types of Circlips Inspection Sorting Machines

• Automatic Circlips Sorting Machine
• Machine Vision Circlips Inspection System
• Camera Vision Circlips Inspection Machine
• High-Speed Circlips Sorting Equipment
• Industrial Circlips Inspection System
• Quality Control Circlips Inspection Machine
• Surface Defect Detection Machine for Circlips

Applications of Circlips Inspection Sorting Machines

• Automotive Manufacturing
• Aerospace Components
• Bearing Manufacturing
• Hydraulic Systems
• Industrial Machinery
• Precision Engineering

Conclusion

Optical Sorting Machines for Circlips provide fast, reliable, and highly accurate inspection using advanced machine vision technology. By automating dimensional measurement, profile inspection, surface defect detection, and intelligent sorting, manufacturers can improve product quality, reduce manufacturing costs, increase production efficiency, and maintain consistent quality standards. These systems have become an essential solution for modern Circlips manufacturing.
