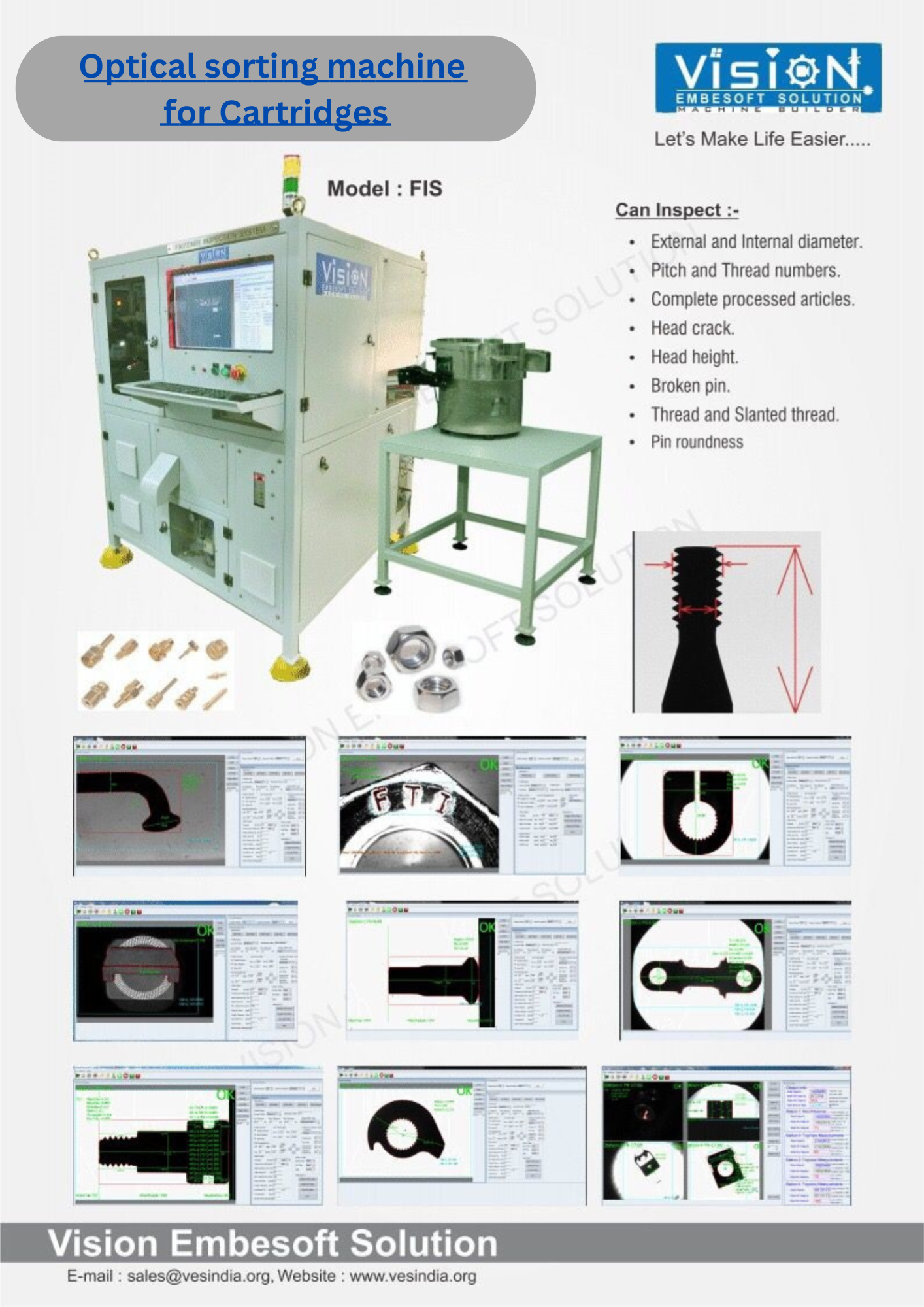

optical sorting machine for Cartridges

Optical Sorting Machine for Cartridges: A Comprehensive Guide

Optical Sorting Machine for Cartridges

Introduction

Cartridges are precision-engineered products that demand the highest levels of quality, consistency, and safety. Every cartridge must meet strict dimensional and visual inspection standards before it reaches the end user. Advanced Optical Sorting Machines for Cartridges utilize high-speed vision inspection technology to automatically inspect, measure, detect defects, and sort cartridges with exceptional accuracy, helping manufacturers achieve superior quality and production efficiency.

Understanding the Need for Cartridges Inspection

During cartridge manufacturing, defects such as dimensional variations, dents, scratches, burrs, deformation, missing features, or assembly inconsistencies may occur. Manual inspection is often slow, inconsistent, and impractical for high-volume production. Automated optical inspection systems provide fast, repeatable, and reliable quality control while significantly reducing human error.

How Cartridges Inspection Sorting Machines Work

Using high-resolution industrial cameras, precision optics, intelligent LED lighting, and AI-powered vision software, the inspection system captures multiple images of every cartridge. The software performs real-time dimensional measurement, surface inspection, and defect analysis before automatically sorting accepted and rejected cartridges.

The system can detect defects including:

• Dimensional inaccuracies
• Surface scratches
• Dents and deformation
• Material defects
• Surface contamination
• Assembly defects

After inspection, Cartridges are automatically sorted according to:

• Size
• Shape
• Diameter
• Material
• Quality Grade

This fully automated inspection process ensures maximum production speed while maintaining exceptional inspection accuracy.

Automatic Video Camera Based Bullet Optical Surface Inspection Measurement Sorting Machine System Can Inspect:

• Fire Hole Presence
• Ovality of Cases
• Stamping
• Bottom Diameter
• Groove Diameter and Angle
• Mouth Diameter
• Full Form
• Primer Pocket Dimensions
• Rim Thickness
• Burrs Inside Case
• Bullet Diameter
• Bullet Length
• Surface Quality
• Bullet Concentricity
• Full Cartridge Inspection
• Cartridge Length
• Cartridge Diameters
• Overall Cartridge Surface Quality

Cartridges Inspection Sorting System: A Comprehensive Quality Control Solution

A Cartridges Inspection Sorting System integrates advanced vision cameras, precision optics, intelligent image processing software, and automated sorting technology to inspect every cartridge with outstanding accuracy. The system ensures every cartridge complies with strict quality standards before packaging or shipment.

Key Inspection Capabilities:

• Overall Cartridge Length Measurement
• Cartridge Diameter Inspection
• Bullet Diameter Measurement
• Bullet Length Inspection
• Bullet Concentricity Inspection
• Fire Hole Presence Detection
• Primer Pocket Dimension Inspection
• Rim Thickness Measurement
• Bottom Diameter Inspection
• Groove Diameter and Groove Angle Measurement
• Mouth Diameter Inspection
• Ovality Detection
• Surface Scratch Detection
• Burr Detection
• Dent Detection
• Full Form Inspection
• Automated Vision Measurement
• Pattern Matching
• Vision Guided Robot Integration
• Barcode Reading & Traceability

These advanced inspection capabilities help manufacturers maintain consistent product quality, reduce defects, improve traceability, and optimize manufacturing efficiency.

Key Components of a Cartridges Inspection Sorting Machine

• High-Speed Feeding System
• Industrial Vision Cameras
• Precision Optical Lenses
• LED Illumination System
• AI-Based Image Processing Software
• Automatic Sorting Mechanism

Benefits of Automated Cartridges Sorting

• 100% Automated Inspection
• Superior Product Quality
• High-Speed Production
• Reduced Manual Inspection Costs
• Accurate Defect Detection
• Improved Traceability
• Lower Rejection Rates
• Higher Manufacturing Efficiency

Types of Cartridges Inspection Sorting Machines

• Automatic Cartridges Sorting Machine
• Machine Vision Cartridges Inspection System
• Camera Vision Cartridges Inspection Machine
• High-Speed Cartridges Sorting Equipment
• Industrial Cartridges Inspection System
• Quality Control Cartridges Inspection Machine
• Surface Defect Detection Machine for Cartridges

Applications of Cartridges Inspection Sorting Machines

• Ammunition Manufacturing
• Defense Industry
• Military Component Manufacturing
• Precision Engineering
• High-Speed Production Facilities

Conclusion

Optical Sorting Machines for Cartridges provide fast, reliable, and highly accurate inspection using advanced machine vision technology. By automating dimensional measurement, defect detection, and intelligent sorting, manufacturers can significantly improve product quality, reduce production costs, increase throughput, and maintain strict quality standards. These systems are an essential solution for modern ammunition manufacturing and precision inspection applications.
