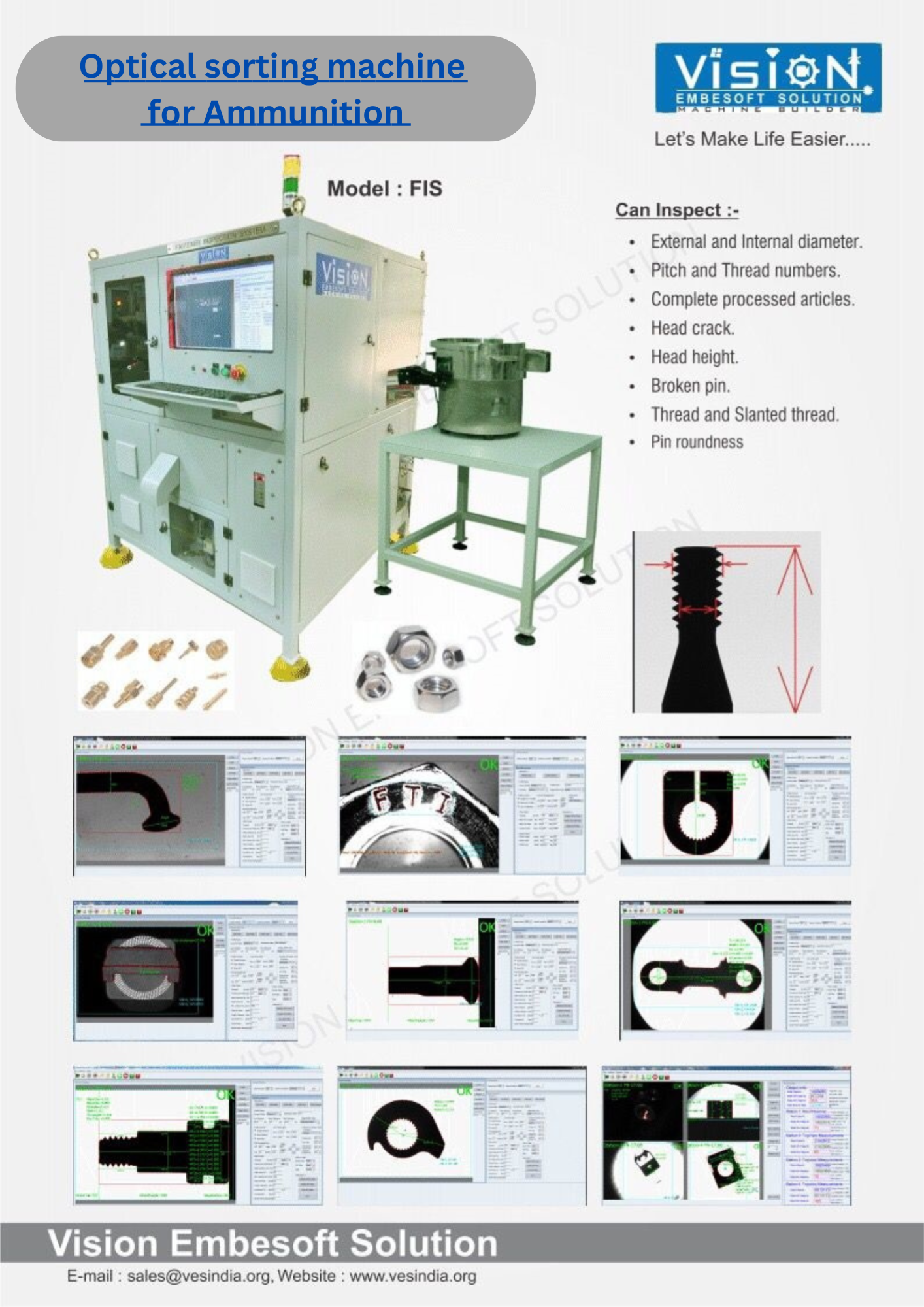

optical sorting machine for Ammunition

Optical Sorting Machine for Ammunition: A Comprehensive Guide

Optical Sorting Machine for Ammunition

Introduction

Ammunition components demand the highest levels of precision, consistency, and quality to ensure reliable performance and safety. Even minor dimensional variations or surface defects can affect functionality and compliance with stringent manufacturing standards. Modern Optical Sorting Machines for Ammunition utilize advanced machine vision, high-resolution cameras, and intelligent inspection software to automatically detect defects and sort components with exceptional speed and accuracy.

Understanding the Need for Ammunition Inspection

Ammunition components undergo multiple manufacturing processes such as forming, machining, threading, heat treatment, and surface finishing. During production, defects such as dimensional variations, cracks, burrs, thread damage, or surface imperfections may occur. Manual inspection is often slow, inconsistent, and unsuitable for high-volume manufacturing. Automated optical inspection systems eliminate these challenges by providing reliable, repeatable, and high-speed quality control.

How Ammunition Inspection Sorting Machines Work

Using high-speed industrial cameras, precision lighting, and AI-powered image processing software, each Ammunition component is inspected from multiple angles. The system automatically detects defects and sorts components according to predefined quality standards.

The system can inspect for:

• Dimensional inaccuracies
• Surface defects
• Thread damage
• Cracks and material flaws
• Missing or incomplete features
• Shape deviations

After inspection, components are automatically sorted based on:

• Size
• Shape
• Dimensions
• Material
• Quality Grade
• Customer-defined specifications

Ammunition Inspection Sorting System: A Complete Quality Control Solution

An Ammunition Inspection Sorting System provides comprehensive automated quality inspection to ensure every component meets demanding manufacturing standards. The system combines optical measurement, machine vision, intelligent software, and automated sorting into a single integrated solution.

Key Inspection Capabilities

• External and Internal Diameter Measurement
• Pitch Detail Inspection
• Thread Detail Verification
• Length Measurement
• Pin Roundness Inspection
• Chamfer Inspection
• Top, Bottom and Side Profile Inspection
• Detection of Slanted Threads
• Reverse Thread Detection
• Incomplete Machining Detection
• Head Crack Detection
• Broken Pin Detection
• Surface Defect Inspection
• Presence & Absence Detection
• Pattern Matching
• Vision Guided Robot Integration
• Part Verification (Orientation, Dimensions, Functional Features)
• Color Verification
• Barcode Reading & Traceability

These inspection capabilities help manufacturers improve product consistency, reduce defective parts, minimize production costs, and maintain complete quality traceability.

Key Components of an Ammunition Optical Sorting Machine

• High-Speed Feeding System
• Industrial Vision Cameras
• Telecentric Optical Lenses
• LED Precision Lighting System
• AI-Based Image Processing Software
• Precision Measurement Module
• Automatic Sorting Mechanism
• PLC Control System
• Production Data Management Software

Benefits of Automated Ammunition Optical Sorting

• 100% Automated Inspection
• Higher Inspection Accuracy
• High-Speed Production Capability
• Reduced Human Error
• Lower Manufacturing Costs
• Reduced Scrap and Rework
• Improved Product Reliability
• Complete Production Traceability
• Real-Time Quality Monitoring
• Industry 4.0 Ready Integration

Types of Ammunition Inspection Systems

• Automatic Ammunition Sorting Machine
• Vision Inspection Machine for Ammunition
• Optical Inspection System for Ammunition
• Camera Vision Inspection Machine
• Digital Video Inspection System
• High-Speed Optical Sorting Machine
• AI-Based Defect Detection System
• Precision Measurement & Sorting System

Applications of Ammunition Optical Sorting Machines

Optical inspection systems for Ammunition are widely used in industries requiring the highest standards of precision and quality, including:

• Defense Manufacturing
• Aerospace
• Automotive
• Electronics
• Metal Components Manufacturing
• Precision Engineering
• Industrial Manufacturing

Conclusion

Optical Sorting Machines for Ammunition provide manufacturers with a reliable, fully automated solution for precision inspection and quality control. Combining machine vision, advanced imaging technology, intelligent software, and automated sorting, these systems significantly improve production efficiency while ensuring every component meets the highest quality standards. As manufacturing continues to embrace automation and Industry 4.0, optical inspection systems remain an essential investment for achieving consistent product quality, operational efficiency, and complete traceability.
