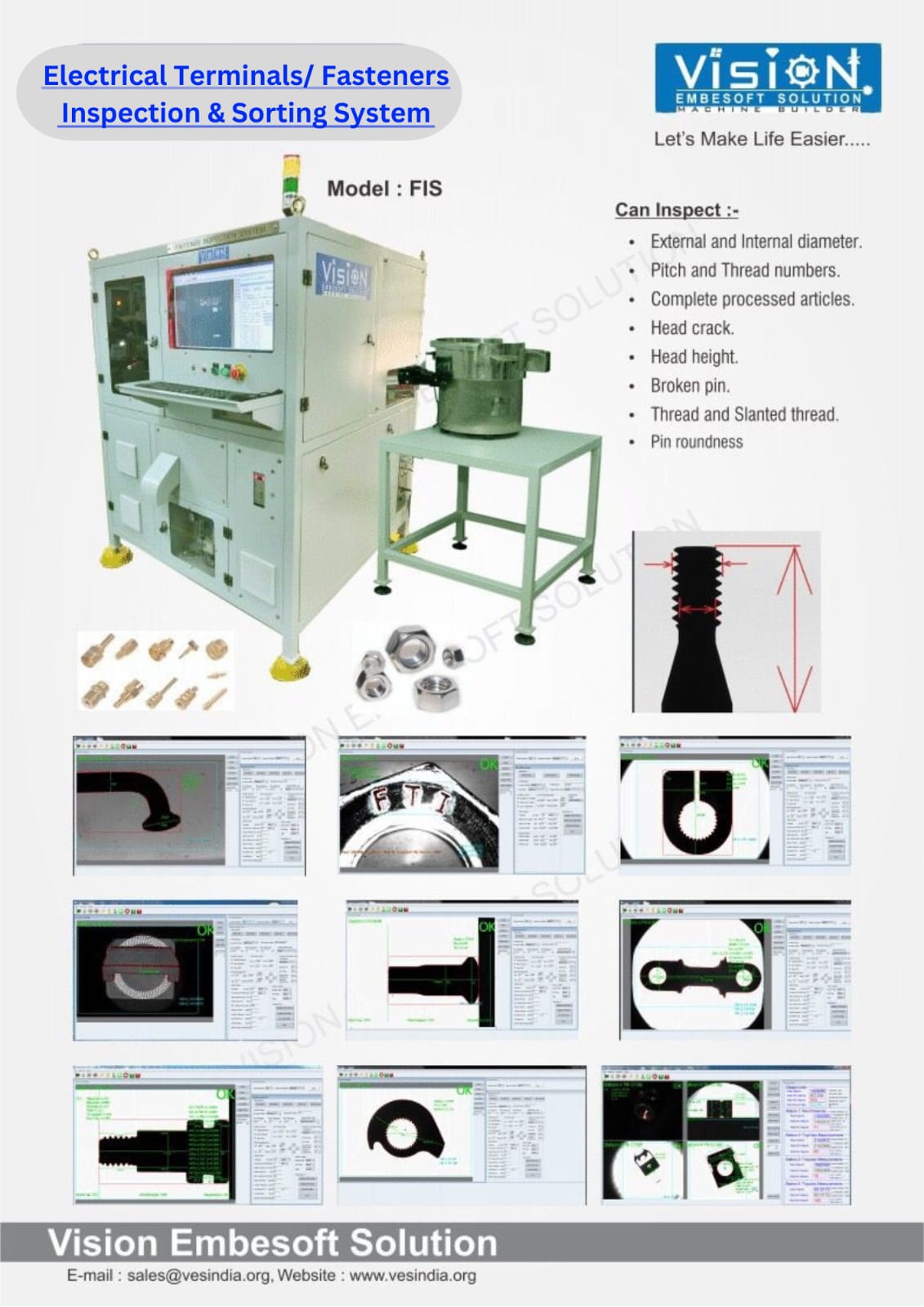

Electrical Terminals Inspection Sorting Machine: A Comprehensive Guide

Electrical Terminals Inspection Sorting Machine

Introduction

Electrical Terminals are critical components used in automotive wiring harnesses, electrical equipment, industrial control systems, consumer electronics, power distribution, and telecommunication devices. Since these components are responsible for secure electrical conductivity and reliable connections, they must be manufactured with exceptional precision. Electrical Terminals Inspection Sorting Machines utilize advanced machine vision, AI-powered image processing, and precision measurement technology to automatically inspect and sort electrical terminals, ensuring consistent quality and maximum production efficiency.

Understanding the Need for Electrical Terminals Inspection

Electrical Terminals are manufactured through stamping, forming, machining, plating, and precision finishing processes. During production, defects such as bent terminals, burrs, cracks, dimensional variations, improper forming, plating defects, scratches, contamination, or missing features may occur. Manual inspection is often slow, inconsistent, and unsuitable for high-volume manufacturing. Automated Electrical Terminals Inspection Sorting Machines provide fast, repeatable, and highly accurate quality inspection while minimizing human error.

How Electrical Terminals Inspection Sorting Machines Work

Using industrial cameras, machine vision systems, AI-based inspection software, precision optics, and laser measurement technology, each electrical terminal is inspected for defects including:

• Dimensional inaccuracies
• Bent or deformed terminals
• Surface scratches
• Burrs and sharp edges
• Cracks and fractures
• Improper forming
• Plating defects
• Material contamination
• Missing or incorrect features

After inspection, Electrical Terminals are automatically sorted according to:

• Dimensions
• Shape
• Material type
• Surface finish
• Plating quality
• Quality grade
• Customer specifications

Electrical Terminals Inspection Sorting System: A Comprehensive Quality Control Solution

An Electrical Terminals Inspection Sorting System combines intelligent vision technology, precision measurement, and automated sorting to ensure every terminal meets strict manufacturing standards.

The system can inspect:

• External dimensions
• Length, width, and thickness
• Terminal geometry
• Bent or damaged contacts
• Burrs and edge defects
• Surface scratches and dents
• Cracks and fractures
• Plating consistency
• Presence or absence of features
• Pattern matching
• Terminal orientation
• Color verification
• Barcode and Data Matrix code reading
• Complete production traceability

These advanced inspection capabilities help manufacturers improve product quality, reduce production defects, and optimize manufacturing efficiency.

Key Components of an Electrical Terminals Inspection Sorting Machine

• Automatic Feeding System: Delivers electrical terminals continuously for high-speed inspection.
• Industrial Vision Cameras: Capture high-resolution images from multiple inspection angles.
• Precision LED Lighting: Provides consistent illumination for accurate defect detection.
• Laser Measurement Module: Performs precise dimensional inspection when required.
• AI-Based Inspection Software: Automatically identifies dimensional deviations, forming defects, burrs, and surface imperfections.
• Automatic Sorting Unit: Separates accepted and rejected terminals according to inspection results.
• Inspection Data Management System: Stores inspection records for quality assurance and complete traceability.

Benefits of Automated Electrical Terminals Sorting

• Superior Inspection Accuracy: Detects even microscopic defects with exceptional precision.
• Higher Production Speed: Enables continuous inspection for high-volume manufacturing.
• Reduced Manufacturing Costs: Minimizes labor expenses, scrap, and rework.
• Consistent Quality: Eliminates operator-dependent inspection errors.
• Complete Traceability: Maintains digital inspection records for quality compliance.
• Production Optimization: Provides valuable inspection data for continuous process improvement.

Types of Electrical Terminals Inspection Sorting Machines

• Automatic Electrical Terminals Sorting Machine
• Machine Vision Electrical Terminals Inspection System
• Camera Vision Electrical Terminals Inspection Machine
• Laser Measurement Inspection System
• High-Speed Electrical Terminals Sorting Equipment
• AI-Based Electrical Terminals Defect Detection Machine
• Precision Optical Inspection Machine for Electrical Terminals

Applications of Electrical Terminals Inspection Sorting Machines

These inspection systems are widely used in:

• Automotive Wiring Harness Manufacturing
• Consumer Electronics
• Industrial Automation
• Electrical Equipment Manufacturing
• Power Distribution Systems
• Telecommunication Equipment
• Medical Devices
• Precision Electrical Component Manufacturing

Conclusion

Electrical Terminals Inspection Sorting Machines provide manufacturers with an advanced solution for inspecting electrical terminals with exceptional speed and precision. By integrating machine vision, AI-powered defect detection, laser measurement, and automated sorting technology, these systems accurately detect bent terminals, burrs, cracks, dimensional deviations, plating defects, scratches, contamination, and forming errors before components reach assembly. The result is improved product quality, higher manufacturing efficiency, reduced production costs, and complete inspection traceability. As electrical component manufacturing continues to demand greater reliability and precision, automated Electrical Terminals Inspection Sorting Machines have become an essential part of modern quality control systems.
