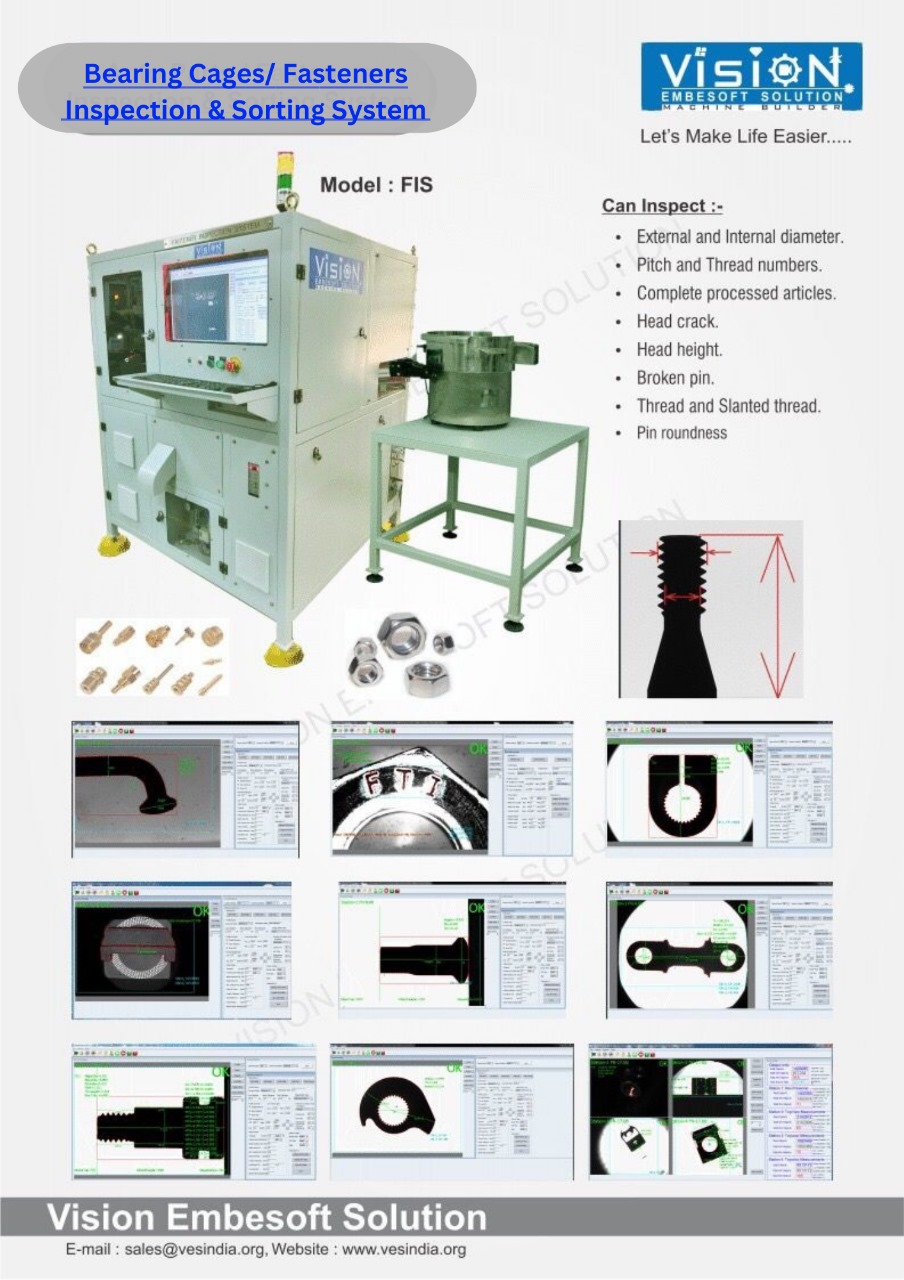

Bearing Cages Inspection Sorting Machine

Bearing Cages Inspection Sorting Machine: A Comprehensive Guide

Bearing Cages Inspection Sorting Machine

Introduction

Bearing cages are critical components that maintain proper spacing between rolling elements, ensuring smooth operation, reduced friction, and extended bearing life. Since they are widely used in automotive, industrial machinery, aerospace, railway, and heavy engineering applications, maintaining their dimensional accuracy and structural integrity is essential. Advanced Bearing Cages Inspection Sorting Machines provide high-speed, automated inspection and precision sorting to ensure every bearing cage meets stringent quality standards.

Understanding the Need for Bearing Cages Inspection

Bearing cages are manufactured through stamping, machining, molding, or precision casting processes. Even minor defects such as dimensional inaccuracies, burrs, cracks, deformation, or surface imperfections can affect bearing performance and durability. Manual inspection is slow, inconsistent, and unsuitable for high-volume production. Automated Bearing Cages Inspection Sorting Machines eliminate these limitations by delivering fast, accurate, and repeatable inspection.

How Bearing Cages Inspection Sorting Machines Work

Using industrial cameras, precision optics, machine vision technology, and AI-powered image processing, these systems inspect every bearing cage for defects including:

• Dimensional inaccuracies
• Surface scratches and dents
• Burrs and sharp edges
• Cracks and deformation
• Missing or damaged pockets
• Roundness errors
• Material defects
• Shape and profile deviations

After inspection, each bearing cage is automatically classified and sorted according to predefined quality parameters such as:

• Outer diameter
• Inner diameter
• Pocket dimensions
• Shape
• Material
• Quality grade
• Customer-specific specifications

Bearing Cages Inspection Sorting System: A Complete Quality Control Solution

A Bearing Cages Inspection Sorting System combines advanced vision technology with precision measurement systems to deliver comprehensive quality inspection throughout the manufacturing process.

The system can inspect:

• Outer and inner diameter
• Pocket dimensions and spacing
• Roundness and concentricity
• Overall height and thickness
• Surface finish quality
• Burr and crack detection
• Presence or absence of critical features
• Profile and contour inspection
• Pattern matching
• Component orientation
• Color verification for coated bearing cages
• Barcode and QR code reading
• Inspection data recording and traceability

These inspection capabilities help manufacturers improve consistency, reduce defective products, and maintain high production quality.

Key Components of a Bearing Cages Inspection Sorting Machine

• Automatic Feeding System: Ensures continuous delivery of bearing cages to the inspection station.
• Industrial Vision Cameras: Capture high-resolution images from multiple inspection angles.
• LED Lighting System: Provides consistent illumination for accurate image capture.
• AI Vision Processing Software: Detects dimensional deviations and surface defects using intelligent image analysis.
• Automatic Sorting Unit: Separates accepted and rejected components with high precision.
• Inspection Data Management System: Stores quality data for production monitoring and traceability.

Benefits of Automated Bearing Cages Inspection Sorting

• Improved Quality Control: Detects even microscopic defects with high accuracy.
• Higher Production Efficiency: Supports continuous, high-speed inspection.
• Reduced Manufacturing Costs: Minimizes manual inspection and lowers rejection rates.
• Consistent Inspection Results: Eliminates operator-dependent variations.
• Complete Traceability: Maintains digital inspection records for quality assurance.
• Production Analytics: Provides valuable data for process optimization and preventive maintenance.

Types of Bearing Cages Inspection Sorting Machines

• Automatic Bearing Cages Sorting Machine
• Machine Vision Bearing Cages Inspection System
• Camera Vision Bearing Cages Inspection Machine
• High-Speed Bearing Cages Sorting Equipment
• AI-Based Bearing Cages Defect Detection Machine
• Industrial Bearing Cages Classification System
• Precision Optical Inspection Machine for Bearing Cages

Applications of Bearing Cages Inspection Sorting Machines

These automated inspection systems are widely used in industries such as:

• Automotive Manufacturing
• Bearing Manufacturing
• Industrial Machinery
• Aerospace Engineering
• Railway Equipment
• Heavy Engineering
• Electric Motors
• Precision Manufacturing

Conclusion

Bearing Cages Inspection Sorting Machines have become an essential part of modern manufacturing by providing accurate, high-speed, and fully automated quality inspection. Their ability to detect dimensional deviations, surface defects, cracks, burrs, and profile inaccuracies ensures superior product quality while improving manufacturing efficiency and reducing production costs. As machine vision and AI technologies continue to evolve, these inspection systems will play an even greater role in enhancing quality control and productivity across the bearing manufacturing industry.
